D1524R High-speed Refrigerated Micro Centrifuge
- Electronic Magnetic door locking system - the lid can be closed with one hand soft touch
- Precooling, the compressor automatically starts cooling as long as the set temperature is lower than the ambient temperature
- Sound indicator at the end of running.
- Temperature range -20℃ to 40℃
- Short pre-cooling time of only 7minutes from room temperature to 4℃
- Up to 9 program storage capacity
- 3-layer sealed rotors ensure safe centifugation

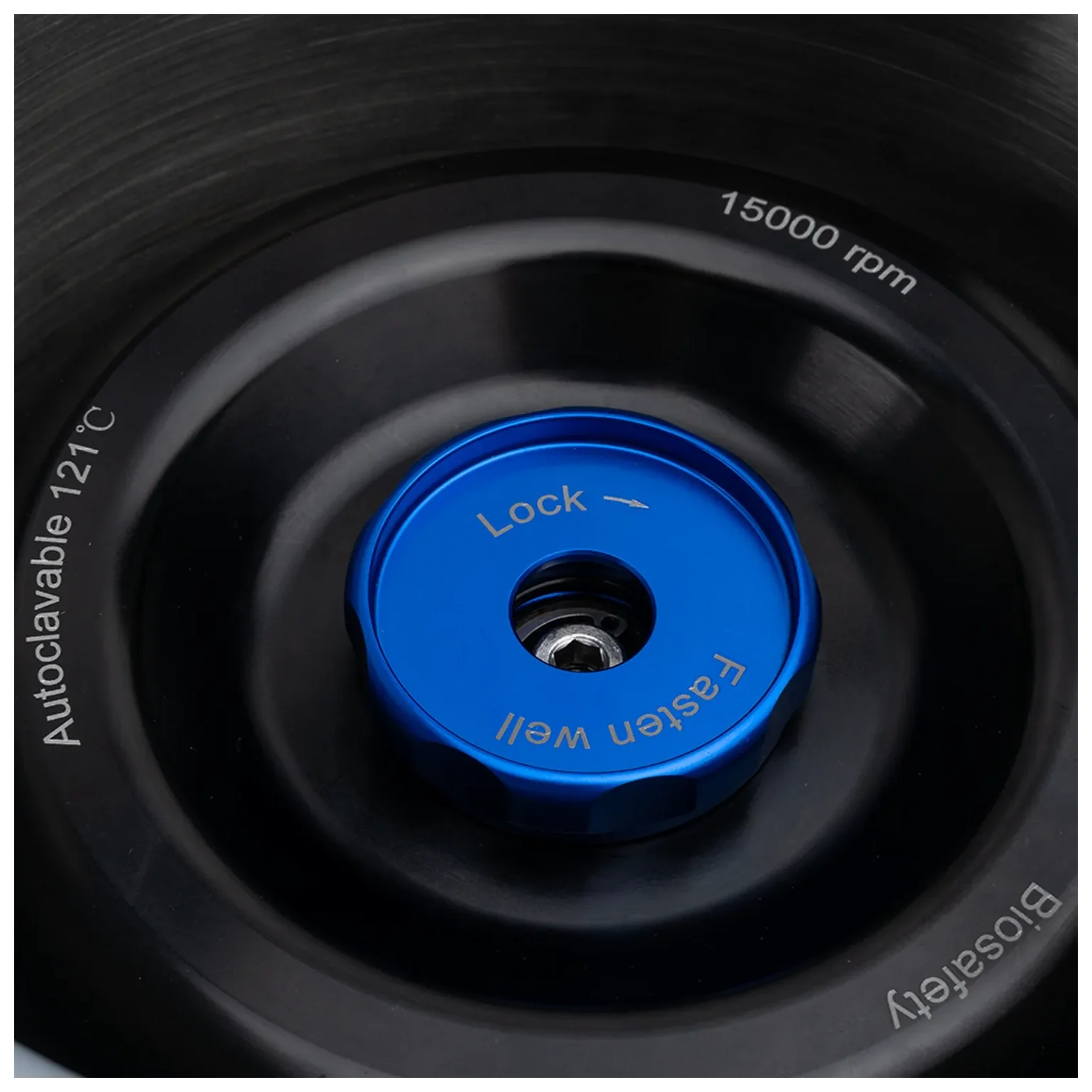

- High-strength aluminum alloy rotor can be fully autoclavable at 121℃
- Rotor imbalance detection alarm
- Adjustable acceleration/deceleration at 9 levels allows gentle braking at low speed for better separation
- Five rotors with 0.2mL, 0.5mL, 1.5mL, 2mL and 5mL centrifuge tubes/ PCR tubes capacity
- An external condensation tank prevents water accumulation within centrifuge chamber
Specifications
|
Parameter
|
Value
|
|
Speed range
|
15,000rpm (200-15,000rpm) in 100rpm increments.
|
|
Max. RCF
|
21,380×g, step: 10×g
|
|
Rotor capacity
|
1.5/2mL ×24 | 0.2/0.5mL ×36 | PCR-8 strips×4 | 5mL ×12 | 5mL×18
|
|
Run time
|
30s-99 min; HOLD (continuous running)
|
|
Acceleration/Braking time
|
25s↑25s↓
|
|
Temperature setting range
|
-20℃- 40℃
|
|
Display
|
LCD
|
|
Power
|
500W
|
|
Voltage/Frequency
|
Single-phase，100-120V/200-240V, 50Hz/60Hz
|
|
Noise level
|
≤56dB
|
|
Motor type
|
Brushless DC motor
|
|
Dimensions [WxDxH]
|
332×553×283mm
|
|
Weight
|
30kg
|
|
Safety performance
|
Dual door lock, over-speed detection, over-temperature detection with Internal diagnosis system.
|
|
Other functions
|
Rotation speed/RCF switchover, inching operation, running process indicator, sound alert. Adjustable acceleration/deceleration at 9 levels program storage capacity.
|
Accessories
Optional rotors and tube adaptors are available, please ask us.
Tubes in each centrifugation run must be balanced. Failure to do so may result in damage to the equipment and injury to personnel.
